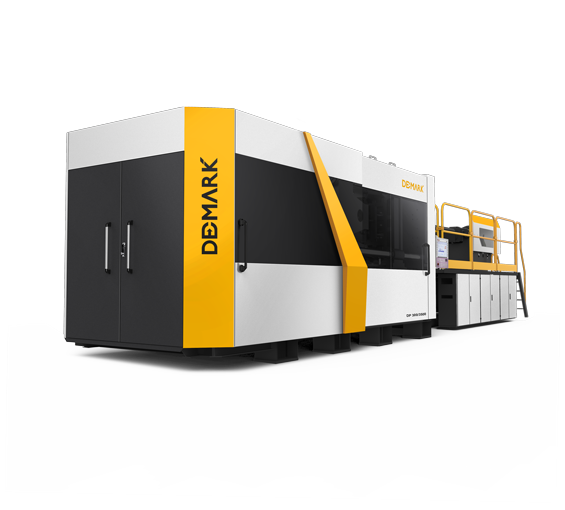

    • Ligtning Series PET Preform Injection Molding Machine

    Ligtning PET Preform Injection Molding Machine

    ● For 96, 128, 144 cavities PET preform mold, Cycle: 7.5S/14g/128cav.
    ● Two-Step Injection, With 3 Station Cooling Robot
    ● Direct-Clamping System, Electric Plasticization

    Send inquiry
    Click to download PDF
    Description Technical parameters Video
    1. 1. Independent electric screw drive brings you both melting and energy efficiency
    2. 2. BECKHOFF centrailized control system special designed for  PET production.
    3. 3. Three station post cooling robot makes the preform perfectly cooled with better cycle time.
    4. 4. Advanced servo valve control technology makes the highly dynamic injection possible.
    5. 5. Up to 5 sets of high efficient accumulator ensure the stability of high capacity injection .
    6. 6. Synchronous material melting,plasticization and injection at the same.
    7. 7. Special design for PET preform mould,which ensure the fast clamping movement and uniformly forced of the mould.
    Model UNIT DP300/3500 DP300/5000 DP400/5000
    INJECTION UNIT Screw L/D Ratio L/D 25 25 25
    Screw Diameter MM 100 120 120
    Shot Weight(PET) G 3500 5000 5000
    Plasticizing Rate (PET) G/S 200 300 300
    CLAMPING UNIT Clamping Force T 300 300 400
    Clamping Stroke MM 585 585 670
    Max/Min Thickness of Mould MM 300~720 300~720 300~820
    Space Between Tie Bars(WxH) MM 660x760 660x760 845x845
    Ejector  Stroke MM 180 180 180
    Ejector  Force T 20 20 28
    NO.of Ejector Pins PCS 9 9 13
    MOULD Cavity(Max) PCS 72 72 96
    Type of Mould
    POWER UNIT Pump Motor Power KW 81+82 81+82 81+82
    Robot Power KW 36 36 43
    Heater Input Capacity KW 78 86 86
    Mould Heater Capacity KW 55 55 68
    ROBOT Manipulator Cavity 216 216 288
    Cooling Form Cavity 216 216 288
    Size(LxWxH) CM 263X157X230 263X157X230 281X160X250
    OTHER Power supply (3-phase AC) V/HZ 380/50 380/50 380/50
    KW 332 332 360
    Chilling Water ℃ 5~10 5~10 5~10
    Mpa 0.8 0.8 0.8
    L/Min 900 900 1200
    Cooling Water ℃ <25 <25 <25
    Mpa 0.3 0.3 0.3
    L/min 300 300 300
    Compressed Air Mpa 0.7~0.9 0.7~0.9 0.7~0.9
    L/min 800 800 1200
    Machine Size(LxWxH) CM 930X180X250 990X180X250 1090X205X260
    Machine Weight T 26 28 34
    Model UNIT DP300/3500 DP300/5000 DP400/5000
    INJECTION UNIT Screw L/D Ratio L/D 25 25 25
    Screw Diameter MM 100 120 120
    Shot Weight(PET) G 3500 5000 5000
    Plasticizing Rate (PET) G/S 200 300 300
    CLAMPING UNIT Clamping Force T 300 300 400
    Clamping Stroke MM 585 585 670
    Max/Min Thickness of Mould MM 300~720 300~720 300~820
    Space Between Tie Bars(WxH) MM 660x760 660x760 845x845
    Ejector  Stroke MM 180 180 180
    Ejector  Force T 20 20 28
    NO.of Ejector Pins PCS 9 9 13
    MOULD Cavity(Max) PCS 72 72 96
    Type of Mould
    POWER UNIT Pump Motor Power KW 81+82 81+82 81+82
    Robot Power KW 36 36 43
    Heater Input Capacity KW 78 86 86
    Mould Heater Capacity KW 55 55 68
    ROBOT Manipulator Cavity 216 216 288
    Cooling Form Cavity 216 216 288
    Size(LxWxH) CM 263X157X230 263X157X230 281X160X250
    OTHER Power supply (3-phase AC) V/HZ 380/50 380/50 380/50
    KW 332 332 360
    Chilling Water ℃ 5~10 5~10 5~10
    Mpa 0.8 0.8 0.8
    L/Min 900 900 1200
    Cooling Water ℃ <25 <25 <25
    Mpa 0.3 0.3 0.3
    L/min 300 300 300
    Compressed Air Mpa 0.7~0.9 0.7~0.9 0.7~0.9
    L/min 800 800 1200
    Machine Size(LxWxH) CM 930X180X250 990X180X250 1090X205X260
    Machine Weight T 26 28 34

    * Demark reserves the right to make changes to the products and specifications are subject to change without notice.
